OEM Test Board for Apple iPhone Series

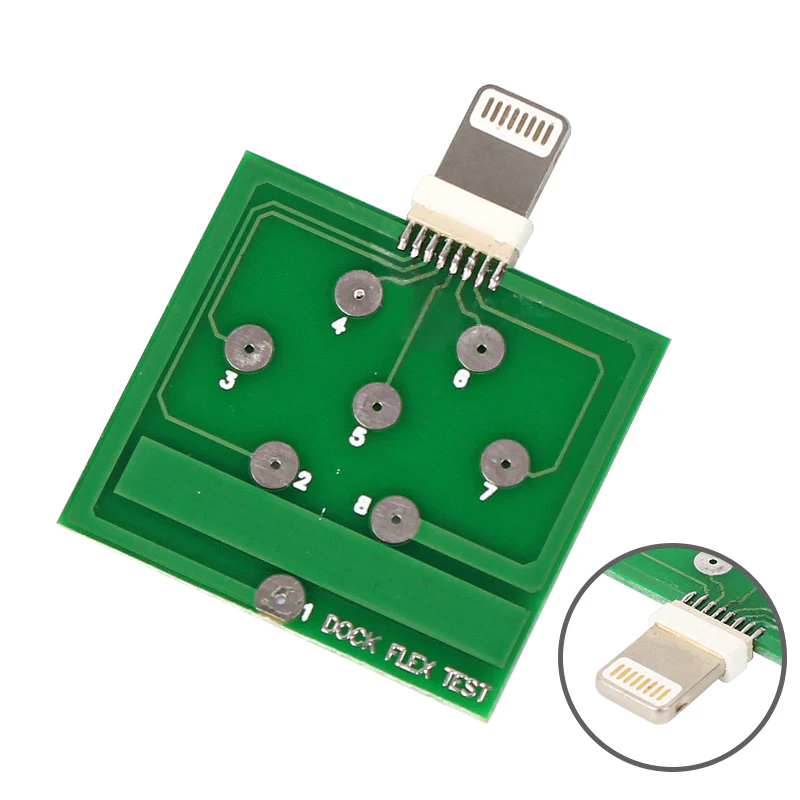

8-pin Lightning Board
for battery / charging connector testing
The board is ideal for testing the battery or connector on Apple phones / tablets with Lightning port.
Used together with a tester device (not included in the sales package).
Features:
- Pins: 1 (Identification / Control), 2 (Channel 1 Negative), 3 (Channel 1 Positive), 4 (Power / Battery), 5 (Identification / Control 0), 6 (Channel 0 Negative), 7 (Channel 0 Positive), 8 (Ground)
- Battery Test (On the tester select the "Diode" option, use Pin 8 and Pin 4)
- Connector Test (On the tester select the "Diode" option, use Pin 8 and Pin 1 / Pin 5)
- Quick and efficient verification
$1.47
Original: $4.21
-65%OEM Test Board for Apple iPhone Series—
$4.21
$1.47Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
8-pin Lightning Board
for battery / charging connector testing
The board is ideal for testing the battery or connector on Apple phones / tablets with Lightning port.
Used together with a tester device (not included in the sales package).
Features:
- Pins: 1 (Identification / Control), 2 (Channel 1 Negative), 3 (Channel 1 Positive), 4 (Power / Battery), 5 (Identification / Control 0), 6 (Channel 0 Negative), 7 (Channel 0 Positive), 8 (Ground)
- Battery Test (On the tester select the "Diode" option, use Pin 8 and Pin 4)
- Connector Test (On the tester select the "Diode" option, use Pin 8 and Pin 1 / Pin 5)
- Quick and efficient verification
